Pasture work made easy

Written by  Mark Daniel

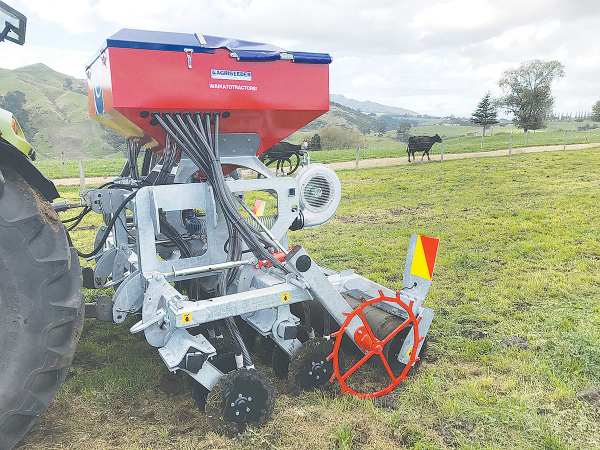

The recently introduced Erth Engineering Agriseeder. The recently introduced Erth Engineering Agriseeder.

Those looking to use direct seeding to establish, rejuvenate or repair grass paddocks or plant catch crops might want to take a closer look at the recently introduced Erth Engineering Agriseeder.

Marketed by Ag and Civil Machinery Direct Ltd, a division of Waikato Tractors in Hamilton, the 3m, 24-row model features a galvanised, heavyduty, linkage-mounted frame that weighs in around 1,500kg. This carries three independent sections, each carrying eight coulters, mounted to the frame using 40mm heavy-duty torsional rubbers that help absorb shock loads, while also allowing more travel and flexibility.

Offering a row spacing of 125mm (5 inches), the coulter arms have 4.5mm Forge de Niaux boron steel soil engaging tips, followed by an angled and scalloped single-disc assembly, both combining to create a 7mm wide band, where the crumbled soil creates a microclimate offering the seed moisture and the seedling protection as it emerges.

Sales manager at Waikato Tractors, Ben Peters, says, “By direct drilling into a firm seedbed, seeds are positioned in the fertile areas of the upper levels of the soil profile, moisture is retained and stones and trash are left undisturbed, while the turnaround back to grazing is also reduced.”

As part of the standard equipment, an Autocontour system acts a secondary suspension, with the benefit of better ground following in undulating terrain. In operation, each coulter block is pushed downwards using individual hydraulic cylinders. Each of the cylinders is connected, so the downward pressure is equalised over the full width of the machine, despite undulating ground.

The system is also said to improve machine reliability by reducing loads on the frame mounting points and bearing assemblies throughout the machine.

Seed distribution is taken care of using a Kverneland-sourced system, with seed metering via a land wheel drive and fan-based pneumatic distribution, with seeds passing down individual pipes to the coulters.

The system features a 400-litre plastic hopper, accessed via a galvanised ladder to a loading platform with a safety rail. Fan speed and seeding information is displayed on a simple readout on the side of the seed hopper, while at the rear of the machine a full width flat roller is fitted for load distribution and consolidation post-seeding.

A range of options includes weight frames for difficult ground conditions, front and rear harrows for conventional tillage situations or improved seed covering in very dry conditions and a second hopper for use with double-entry coulters for fertiliser application at the same time as seeding.

www.agandcivilmachinery.co.nz
