Landini Rex 4 vineyard tractor series debuts in NZ
The Landini Rex 4 Series, recently released in New Zealand, is designed with vineyards in mind.
The Tedd-air 1128T, trailed tedder, becomes the flagship in the range, offering a 11.2 metre (36-feet) working width, to complement the existing Tedd-air 840 T (8.4m/ 27.6-feet).
First introduced in 2015, the range is built for arduous conditions, featuring a robust frame and heavy-duty drivetrain, sourced from well-known manufacturers Walterscheid and Comer.
Up front, the tedder is coupled to the tractor’s lower link arms using a two-point headstock, rear transport wheels, with individual wheels, supporting eight tedding rotors, each of 1.6 metre diameter, carrying seven, “double-hook” spring steel tines.
The forward angled tines, configured with three-stage height adjustment allow the grass to be gently lifted, inverted and placed back on the ground behind the machine. Tipping the scales at 2860kg, despite its impressive working width, the 1128 T, hydraulically fold to a transport width of three metres, a height of 2.9 metres and an overall length of 5.6 metres.
Operated via a 540 speed PTO input, standard equipment includes a headland management curtain to keep crop away from fences lines, a locking system, lighting kit and 16 x 6 x 5.8 flotation tyre equipment, with a spare wheel/tyre mounted on the frame.

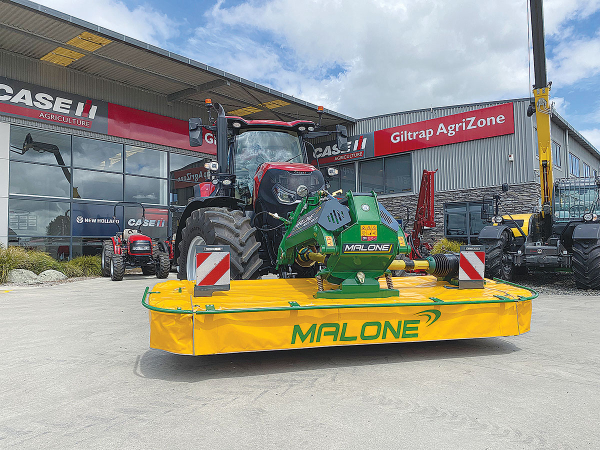

Also new from the Malone stable is a duo of disc-only mowers, the Procut 3000 and 3400 FP models, with mowing widths of 3.0 and 3.4 metres, respectively. Featuring a heavy-duty frame, the mower assemblies are mounted using a parallel linkage that effectively “pulls” rather than “pushes” the mower, meaning it achieves much greater ground adaptability and rises over, rather than ploughing through any immoveable objects.
The cutter-bar and gearbox modules are once again supplied by industry leader Comer, with the former equipped with either, seven or eight disc assemblies, each carrying twin, 4mm thick blades. PTO input is 1000rpm, via a heavy-duty Walterscheid assembly, protected by friction and over-run clutches, over-run protection and heavy-duty wear plates.
Visit www.gaz.co.nz or visit site G25
