The machines have been built in a modern factory in the Netherlands since 1998, a team of 200 employees turning out around 2000 annually.
The range offers engine sizes of 20-75hp and lift capacities from 800-6000kg to suit users from landscapers and horticulturists to farmers.
Machines up to 60hp largely use Tier3A Kubota engines, the range topping N761T a Deutz Tier3B unit. Drive is taken from the engine to a two-stage hydrostatic supplied by Rexroth which will ensure easy servicing and worldwide parts back-up. 4WD and 16 tonne-rated heavy duty axles are fitted to the largest machines.
These axles offer electrically engaged, 100% differential lock to front and rear, so should ensure drive is maintained in all conditions.

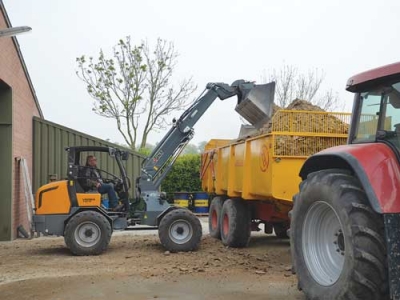

A key point of difference with these units is the articulated design that allows accurate placement of the load in tight places, not always the case with rigid machines, and central lateral oscillation keeps the wheels in contact with the ground in difficult terrain.
The boom assembly has parallel lift, a Z-linkage at the implement coupling point which helps increase crowd capacity and tearout forces, and a gear driven main system hydraulic pump rated at 80L/min. An optional load sensing pump at 150L/min is available for high demand applications.
The operator is catered for with wide access entry to the platform or cabin, and all structures comply with ROPS and FOPS standards in the event of a rollover or falling objects. The control system is ergonomically laid out with a single lever joystick for the main boom, and an electrically actuated forward/reverse directional shuttle lever.
As with any machine of this type, the versatility extends beyond just lifting, and Forest Quip intends to offer a full range of attachments.
There are seven NZ dealers, and a dealer development programme underway to increase this number to 15-20 outlets over the next 12 months.
