Its new K-Line G-Set Solid Set irrigation system needs only seven sprinkler pods per hectare to give full coverage. Pods are located about 35-40m apart.
Central to the system is that each pod operates independently and, because they work sequentially, the system does not need large delivery lines. The total area is covered in 24 hours.
The pods are fixed in the ground and can be mowed around as can fixed water troughs.
Each sprinkler is fed by a 63mm medium density water line that can be mole ploughed in below harvesting depths. The pods are dug in and attached to the line by patented nut-slide fittings. Each delivery pipe to the sprinkler has an irrigation solenoid operating valve and control system for programming water delivery. The sprinklers have a patented protection system.
The pods are highly visible, are made of UV stabilised polyethylene and are 500mm above ground, which RX Plastics says is high enough so that livestock will not walk into them and low enough that they will not rub against them.

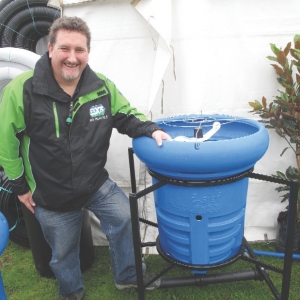

“For farmers concerned at the high labour input on farm, the K Line G-Set Solid Set irrigation system will be ideal,” says marketing manager Phil Gatehouse (pictured).
He adds that the system can operate on rolling land where sprinklers cannot be used and where shifting pods is a health and safety issue.
“We believe this new system is more friendly and aesthetic in the environment because no trees, hedges or shelter belts have to be removed – unlike other large scale irrigation systems.”
The amount of water applied is usually set at 5mm daily, or more if necessary. The controls are at the pump house and can be set for once per week or daily application, as the season dictates. Optional extras are a wired or electronic system to the solenoid operating valve.
Gatehouse also sees these being used on pivot corners and in smaller areas that do not warrant a large financial outlay.
“It is dearer to install, but when you take into consideration the reduction of damage to the environment, being able to install it on formerly less productive land and the on-going reduction in labour inputs the K Line G-Set Solid Set Irrigation system is a winner.”
