Monday, 11 July 2016 06:55

Big solution for a big problem

Written by

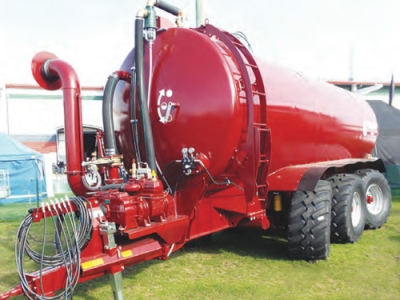

Giltrap’s vacuum slurry tanker. Giltrap’s vacuum slurry tanker.

Dairy effluent, particularly slurry, can be a big problem.

As environmental pressures increase, there's no doubt that New Zealand's dairy farmers will need to take a close look at their existing systems, and learn to understand the nutrient value of this by-product.

Big problems need big solutions, and they don't come much bigger than the Giltrap Engineering vacuum tanker shown on their Fieldays site. With a capacity of 20,000 litres, 8.5 metre length, 3.2 metre height and a tare weight of 7.7 tonnes, this behemoth should certainly make a large hole in the effluent pond during the working day.

Manufactured from 6mm plate steel the tank is supported along its full length by a heavy duty integrated chassis, the superstructure is carried on a HD tri-axle bogie system, with steered front and rear axles, fitted with oversized tyres, and offering hydraulic braking on all six wheels to stop progress safely.

High spec European componentry is used throughout and includes a Battioni Pagani rotary vane vacuum pump featuring auto lubrication to deliver 12,000 litres per minute output to fill the beast in less than two minutes. Pump protection sees a double moisture trap layout, whilst all fittings are either brass or heavily galvanised steel for corrosion protection and an extended operating life

Internally the tank is fitted with a reinforced baffle plate to prevent liquid surging as the tank empties, and offers twin manhole access points for easy entry to facilitate cleaning and maintenance. Around the machine, three filling points are fitted as standard, which use 200mm sectional hoses for rapid filling.

Shown at Fieldays with optional sprung axles, and the operator friendly Autofill system, the range is offered with a 3 year warranty for peace of mind, and can be customised with a range of accessories to suit individual operating requirements.

www.giltrapeng.co.nz
