Case IH is expanding its popular Puma range in New Zealand, with a new model that was released at Fieldays.

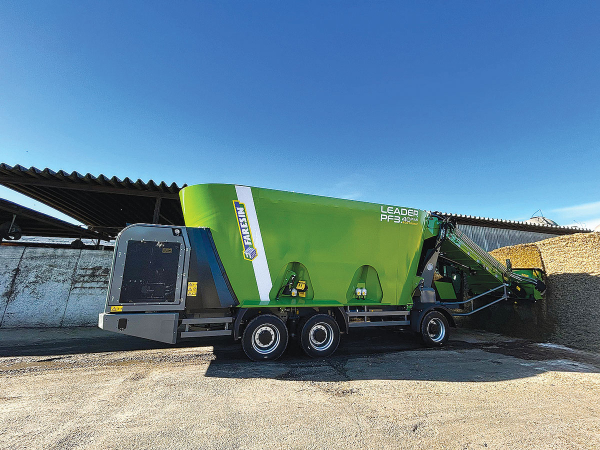

The recent addition of a flagship self-propelled machine to the Leader PF Ecotronic range sees that capacity jump to 40 cu. metres, with the arrival of the company’s first three vertical auger unit.

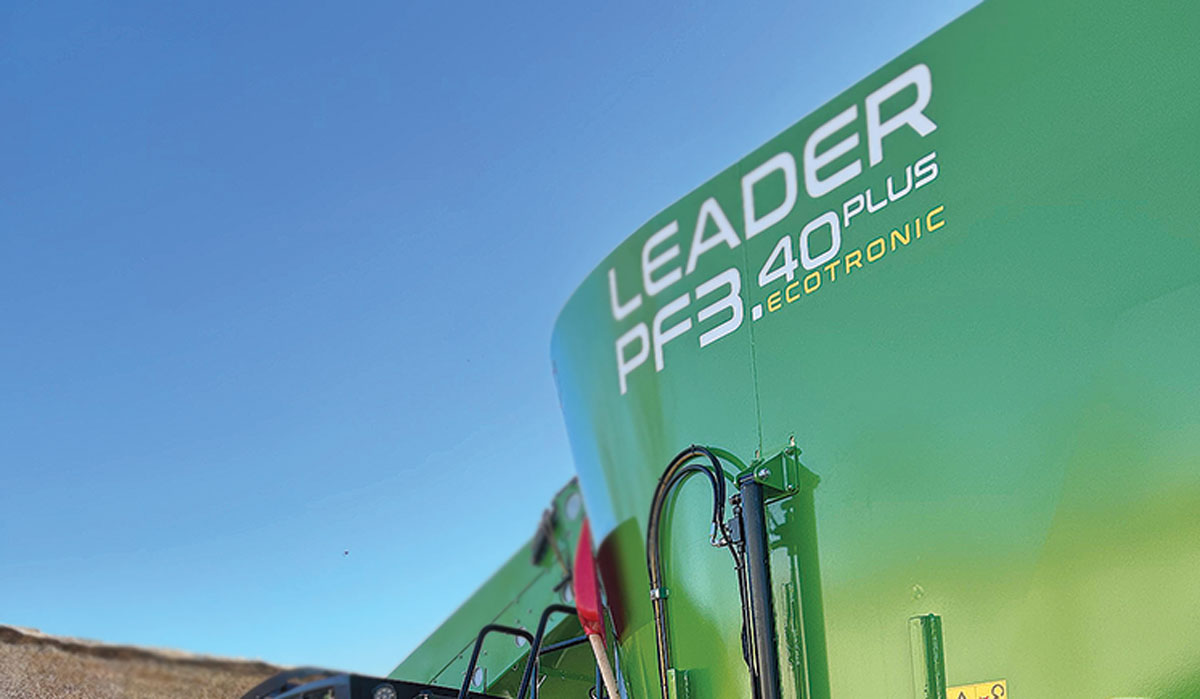

Measuring 12m long by 2.8m wide and 3.75m high, the model 3.40 tips the scales at 22 tonnes unladen, carried on a three-axle layout, with the front and rear axles being driven to deliver permanent four-wheel drive.
Power is provided by a rear mounted FPT N^& engine delivering 212kW (290hp), while up front a 2200mm milling cutter head can reach to a height of 6.5m.
As part of the ration formulation process, the Ecotronic control system oversees all key components of the machine. In practice, this means that once a ration has been formulated and entered the system, the operator can set parameters for all key areas such as the milling head and the mixing tub. The control system ensures these settings are maintained to achieve a consistent homogenous mix.
Additionally, as material is loaded, it passes through an automatic shredder, located rearwards of the milling head, which allows ingredients to be “pre-prepared” to a preferred length before they enter the tub. This removes the need to engage the hydraulically-activated counter knives, thereby saving overall power demand.
 |
|---|
|
As part of the ration formulation process, the Ecotronic control system oversees all key components of the machine. |
In addition, the PolispecNIR unit monitors the mix in real-time, alerting the operator when the optimum result is achieved, while also passing data to machine and management programmes for proof of product and ongoing monitoring.
A front-mounted cabin offers excellent operator comfort, with an extensive machine overview by ergonomically placed controls and multiple display screens.
Faresin mixer wagons are distributed in New Zealand by Power Farming Ashburton.
