Canterbury Farmer Builds on 160 Years of Dairy Legacy
Gareth Hale is the current custodian of a 160-year legacy that saw his great grandfather dairying in Taranaki since the mid-1850s and grandfather dairying in the Waikato from the early 1900s.

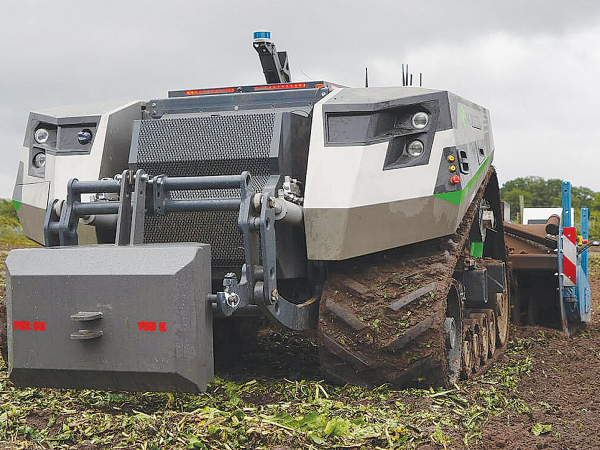

Power is provided by an off-the-shelf Deutz four-pot churning out 156hp, this in turn is mated to a generator that powers an electrical driveline at speeds of up to 13.5km/h.
The AgBot is also able to power implements with up to 136hp available through 700-volt electrical connections. An example is the Imants rotary spader/subsoiler, which was converted to electrical drive for field trial in the 2020 European autumn.
Offering infinitely variable track width from 1,800 to 3,000mm, the robot can carry up to three tonnes out front and upt to eight tonnes on the rear linkage and hydraulic flow of up to 80 litres per minute. Implement mounting is via a largely conventional three-point linkage, although implements are folded over the top of the unmanned machine for transport.
To move between farms a separate twin-wheel axle and drawbar assembly is used to move the unit.
The machine's autonomous functions combine technologies such as GPS, positional sensors and optical recognition to avoid obstacles.
A second unit is about to hit the paddocks of Europe in the coming weeks. This time it is configured with a 100kW (125hp) electrically-driven PTO system that will allow the use of standard implements like power harrows or rotary hoes. This unit, which will be followed by a third later in the year, will also feature independent track suspension.
The first 10 production machines are expected in 2022, with an expected price tag of around €250,000 (NZ$420,000). Larger volumes are expecte to follow the following year.
By that stage, the company says the AgBot will be available with interchangeable tracks with a maximum width of 910mm.
